SGP28-28BL: dc brushless planetary gear motor

Description

Model:SGP28-28BL dc brushless planetary gear motor

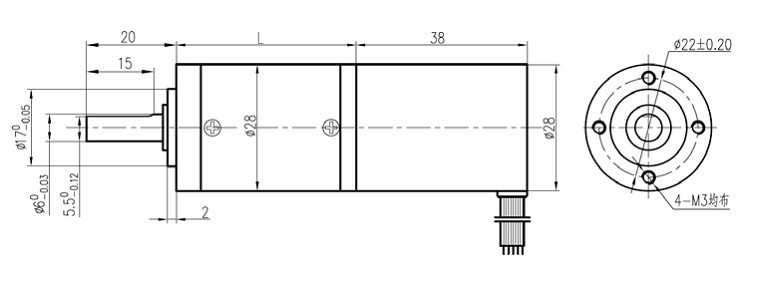

1.Diameter: 28mm
2.Voltage: 24V
3.Input speed: 4000rpm

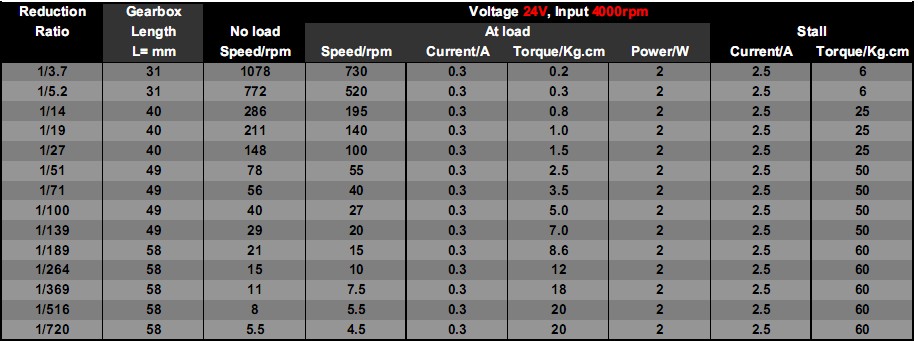

4.Reduction ratio: 1/4,1/19,1/62,1/231,1/1014...
5.Output speed: 4.5~730rpm
6.Rated torque: 0.2~20Kg.cm
7.Built-out drive ( 8 wires ),built-in drive (5 wires)
8.Specs can be custmized for you

Applications
1.Pump

2.Medical system

3.Robotic

4.Home appliances
